When installing automatic gates, sliding gates, swing gate openers, or barrier gates, many installers focus on the motor performance but overlook one critical safety component — the photocell sensor.

A gate opener can operate without a photocell, but without reliable obstacle detection, safety risks increase significantly. A photocell sensor for gate opener is not just an accessory; it is an essential device that improves safety, prevents accidents, and enables smarter access control logic.

Enhanced Safety with Anti-Crush Protection

During the operation of automatic gates or barrier gates, people, vehicles, or objects may remain within the moving area. A reliable infrared safety sensor for automatic gates detects obstacles and immediately sends a signal to the controller, stopping or reversing the closing movement.

By creating a detection zone across the access area, the photocell sensor helps prevent vehicle damage, pedestrian injuries, and unexpected accidents, making it a key safety solution for residential driveways, commercial entrances, and parking access systems.

Smart Vehicle and Pedestrian Detection

Without a photocell sensor, automatic closing usually depends on fixed timer settings. If the closing time is too short, vehicles or pedestrians may still be in the passage area. If it is too long, the gate remains open unnecessarily and reduces security.

With a safety photocell for barrier gate, the system can detect whether the access area is clear before closing. The gate closes only after the detected object has left the safety zone, creating a smarter and more reliable operation experience.

Flexible Installation for New and Retrofit Projects

Traditional ground loop detectors require cutting the pavement and installing underground wiring, which can be difficult for completed driveways, parking areas, or renovation projects.

A photocell sensor requires no ground excavation and offers a simpler installation process. Compared with microwave sensors, infrared solutions provide a cost-effective option for many automatic gate applications while maintaining reliable outdoor performance.

JUJIANG GIANT Photocell Sensor Solutions

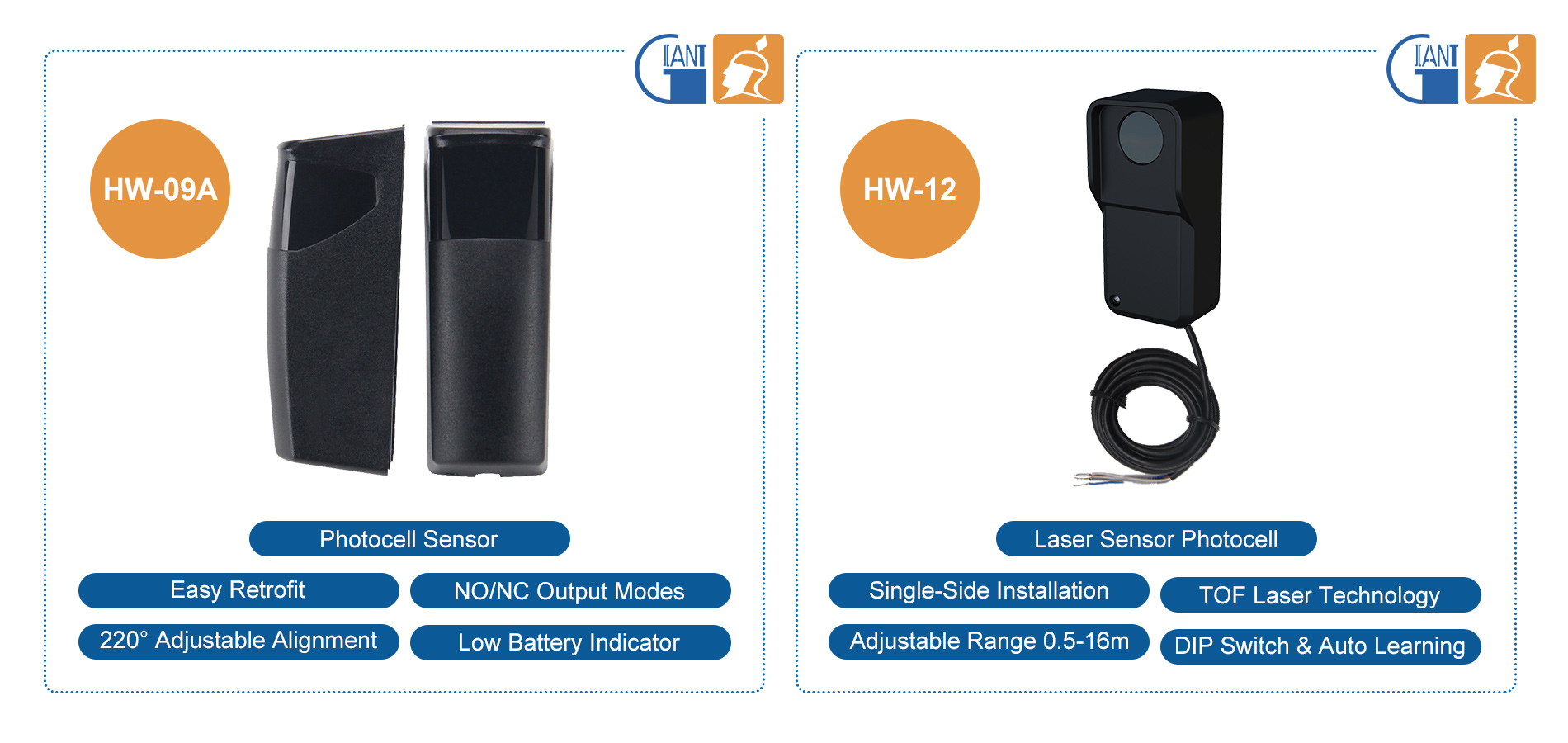

HW-09A Photocell Sensor — Ideal for Retrofit Applications

The photocell sensor HW-09A consists of a transmitter and receiver powered by AAA batteries, eliminating the need for wiring across the gate entrance.

This design is especially suitable for existing residential driveway gates, garage entrances, and renovation projects where additional wiring may damage finished walls or surfaces.

The transmitter supports 220° directional adjustment, allowing installers to easily align the signal. The receiver connects directly to the gate control board and supports NO/NC output modes. A low battery indicator helps ensure timely maintenance.

HW-12 Laser Sensor Photocell — Single-Side Installation with Adjustable Detection Range

In some gate automation projects, installing sensors on both sides of the passage is difficult due to walls, limited space, or complex site conditions.

The Laser Sensor Photocell HW-12 provides a more flexible solution with integrated transmitting and receiving functions. It supports single-side installation without requiring opposite-side alignment or additional cross-passage wiring.

Based on TOF laser distance measurement technology, HW-12 detects the distance of objects within the preset range. Compared with traditional photocell sensors that rely on beam interruption, the laser sensor photocell offers more flexible installation and stable detection performance in various outdoor environments.

With an adjustable detection range of 0.5–16 meters, installers can quickly configure the detection distance through DIP switches or automatic learning functions.

Conclusion

For automatic gate systems and barrier gates, photocell sensors provide the essential connection between safety and intelligent operation. From anti-crush protection to smart closing control, they improve reliability while meeting modern access safety requirements.

Choosing JUJIANG GIANT infrared safety sensors and laser sensor photocell solutions helps installers create safer, smarter, and more efficient gate automation projects.
