For different gate installations, the opening angle of a swing gate can vary from 90° to more than 120°. Many users may wonder why an automatic swing gate opener can always stop accurately at the required position. The answer lies in the combination of precise mechanical installation and reliable limit control technology.

A linear arm swing gate opener controls the gate movement through the extension and retraction of the actuator arm. The final opening angle is mainly determined by the installation position of the mounting brackets, actuator travel length, and limit adjustment settings. Although different models may have different structures and control methods, the following adjustment principles apply to most electric swing gate opener systems.

Adjust the Mounting Bracket Position First

The bracket installation position is the foundation for controlling the gate opening angle.

Before adjustment, make sure the gate is completely closed and the actuator arm is in its correct starting position. Then manually open the gate to the desired angle, such as 90°, and check the actuator extension length.

During installation, the actuator should not reach its mechanical end position when the gate is fully opened. A proper travel allowance should be reserved to prevent the motor from continuously pushing against the gate structure. Without enough clearance, the opener may experience excessive load, frequent overload protection, or reduced service life.

The distance between the mounting bracket and the gate hinge directly affects the opening angle. Generally, a shorter distance allows a larger opening angle, while a longer distance reduces the opening range. Therefore, installers should determine the optimal bracket position according to the gate size, weight, actuator stroke, and required opening angle.

Set the Limit Position for Accurate Stopping

After the mechanical installation is completed, the limit system ensures that the automatic gate opener stops at the correct position.

Different swing gate opener designs use different limit methods:

Electronic Limit Control

Some gate motors use current detection technology. When the gate reaches the preset position and resistance increases, the control board detects the change in motor current and stops operation automatically.

This solution provides a simple structure and smooth operation, but the sensitivity settings need to be adjusted properly. Incorrect settings may cause early stopping or insufficient protection.

Mechanical Limit Control

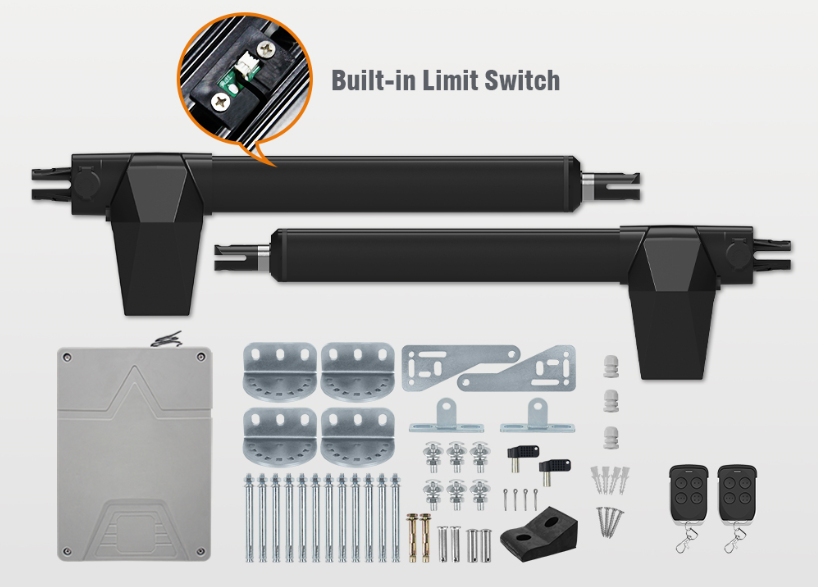

Other models use physical limit switches or adjustable limit stoppers inside the opener. When the opener reaches the preset position, the stopper triggers the limit mechanism, allowing the motor to stop accurately.

This method provides stable positioning and is widely used in heavy-duty swing gate applications where reliable operation is required.

Example: JUJIANG GIANT Swing Gate Opener Solutions

JUJIANG GIANT provides different linear arm swing gate opener solutions for residential and industrial applications.

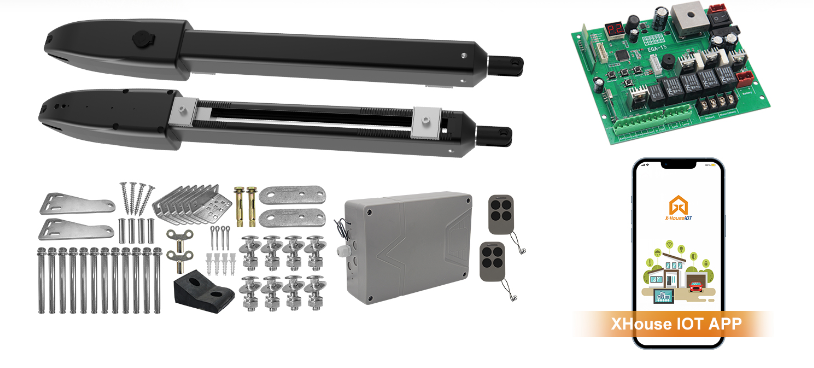

PKM-C025 Swing Gate Opener

The PKM-C025 swing gate opener combines adjustable limit stoppers with overload protection, providing double safety control. Installers can adjust the limit position according to actual gate conditions, while the control system provides additional protection during operation.

For larger and heavier gates, the PKM-C081 AC220V heavy duty swing gate opener is designed for single gates up to 500kg and 3.5m in length. Its reliable limit structure makes it suitable for high-frequency commercial and industrial gate applications.

Conclusion

Proper opening angle adjustment is essential for smooth operation, safety, and long-term durability of an automatic swing gate opener. By selecting the correct bracket position and adjusting the limit system accurately, installers can achieve stable gate movement for residential driveways, commercial entrances, and heavy-duty gate projects.

With years of experience in gate automation, JUJIANG GIANT provides reliable electric swing gate opener solutions designed for different installation requirements and application environments.
