A barrier gate may open and close dozens or even hundreds of times a day in residential communities, commercial parking facilities, logistics sites, and industrial access points. Over time, its service life depends not only on the quality of the barrier gate operator, but also on how the motor manages starting, stopping, load, heat, and mechanical stress.

1. How Different Motor Types Affect Barrier Gate Life

Brushed DC motors are relatively simple and cost-effective, but their brushes and commutators are wear components. Frequent operation gradually increases maintenance requirements and can affect operating stability.

Fixed-speed AC induction motors are robust and widely used. However, direct starting and stopping can create torque shocks that are transferred to gears, bearings, and the boom arm. In high-traffic applications, this repeated mechanical stress can accelerate wear.

Brushless DC and permanent-magnet synchronous motors eliminate brushes and can provide smooth, efficient operation with electronic speed control. They are well suited to applications where low maintenance and frequent cycling are important, However, its higher upfront cost may be a consideration for some applications.

Servo motors provide precise closed-loop control and are typically reserved for specialized applications where high positioning accuracy and advanced motion control justify their higher system cost.

Three-phase AC induction motors with variable-frequency control offer a practical balance between durability, control, and cost. With an Inverter Motor system, soft start and soft stop reduce sudden torque changes, while controlled low-speed operation helps the boom move more smoothly under load.

2. Why Motor Control Matters for Springless Barrier Gates

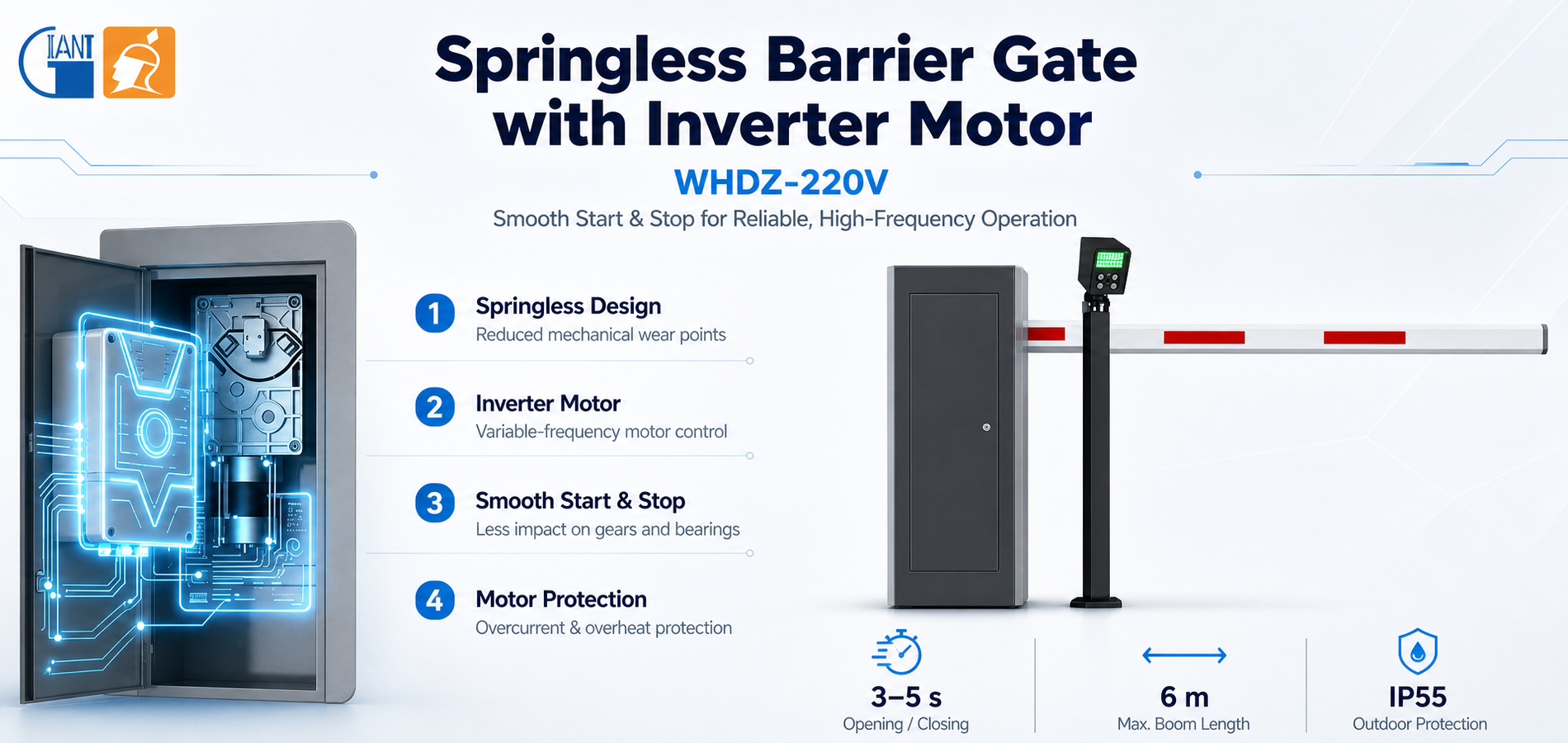

The JUJIANG GIANT WHDZ-220V uses a springless design with a three-phase AC induction Inverter Motor. Traditional barrier gates often use balancing springs, which can become fatigue or maintenance points over long-term use. Removing the spring reduces one mechanical wear component, but it also makes smooth motor control more important.

The variable-frequency control system gradually accelerates and decelerates the motor, reducing impact on the gearbox, bearings, and boom arm. This helps minimize vibration, end-position impact, and repeated mechanical stress during high-frequency operation.

The control system also incorporates overcurrent, overheat, and stall protection. These functions help protect the motor and electronics when the boom encounters abnormal resistance, excessive load, or unfavorable operating conditions.

3. A More Complete Approach to Barrier Gate Reliability

Motor type is only one part of service life. Correct boom selection, mechanical balance, installation quality, duty cycle, environmental protection, and regular maintenance all affect long-term performance. For outdoor installations, features such as IP-rated protection, accurate limit positioning, manual release, and compatible safety devices are also important.

For parking facilities, residential entrances, commercial sites, and industrial access points, the goal is not simply to choose the motor with the highest theoretical lifetime. A well-matched barrier gate operator should provide stable motion, manageable maintenance, appropriate duty-cycle capability, and reliable protection throughout daily operation.

By combining a springless structure, three-phase AC induction Inverter Motor, variable-speed control, and multiple protection functions, the WHDZ-220V is designed around a balanced approach to long-term barrier gate reliability. It also supports predictable maintenance planning for sites with frequent vehicle movements.
