For many estate owners, farm operators, and luxury villa properties, a large swing gate represents both security and prestige. However, in harsh environments such as snowy regions, sloped driveways, gravel surfaces, or coastal areas with strong winds, traditional swing gate systems often become unreliable.

Common problems include frozen gates, scraping against uneven ground, overloaded gate motors, and poor sealing performance.

This case study demonstrates how a combination of Uphill Rising Hinges successfully solved these issues for a private estate.

Project Overview

Property

    Private 8-acre estate

Gate Specifications

    Dual-leaf wrought iron swing gate

    Each leaf width: 1.5 m

    Weight per leaf: 290 kg

    Existing Configuration

    Standard gate hinges

    Site Conditions

    Winter season lasting up to 5 months

    Gravel driveway with a 3° slope

    Snow accumulation exceeding 20 cm

Customer Challenges

1. Snow Blocking the Gate

Heavy snow regularly blocked the gate path, forcing the owner to manually clear snow several times per week.

2. Gate Scraping on Uneven Ground

Because of the sloped gravel driveway, stones and surface irregularities often caused the gate bottom to scrape or jam during operation.

3. Wind Noise and Poor Sealing

Strong winds caused gate movement, vibration, and impact noise. Gaps beneath the gate also allowed dust, sand, and cold air to enter the property.

The owner considered replacing the system with underground gate operators, but that would have required major excavation work and damage to the existing driveway.

Instead, we recommended a retrofit solution using Uphill Rising Hinges.

The Solution: Uphill Rising Hinges

How Uphill Rising Hinges Work

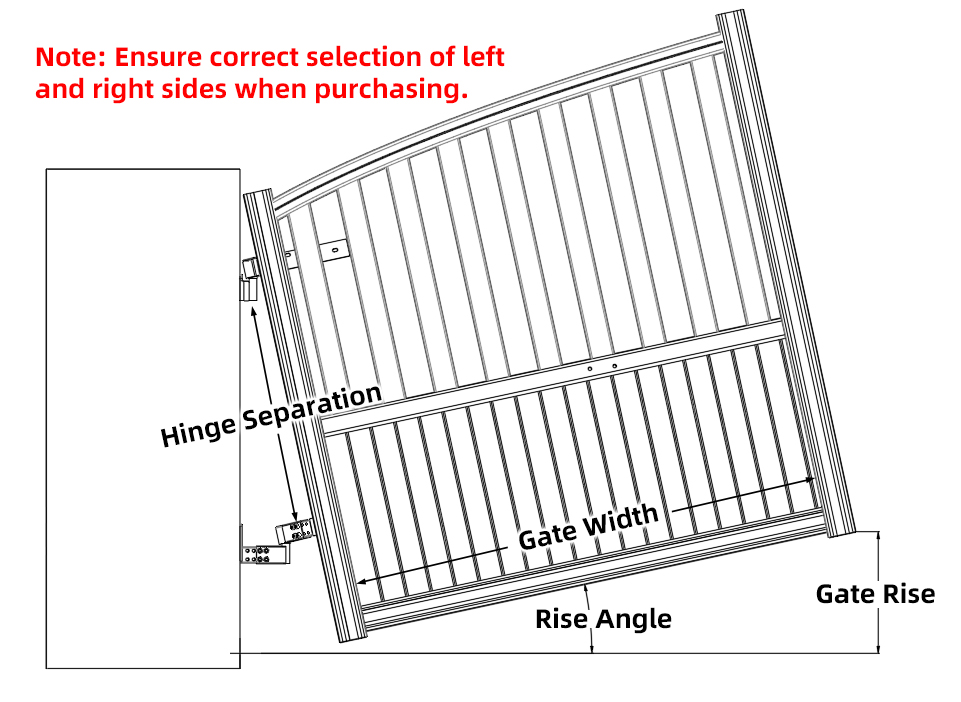

Uphill Rising Hinges use an offset spiral lifting mechanism built into the hinge shaft.

As the gate begins to open, the gate leaf automatically rises upward, lifting the bottom edge clear of snow, gravel, uneven surfaces, or other obstacles.

When the gate closes, gravity lowers the gate back into a fully sealed position.

Advantages of the Lifting Hinge

Suitable for different door widths and installation scenarios.
Multiple size options ensure there is always a model that fits your current project.
Provides stable and effortless lifting for better user experience.
Strong structure design improves door support and durability.
Designed for convenient installation and replacement.

Before vs After Upgrade

Conclusion

Combining Uphill Rising Hinges is not simply a hardware upgrade — it is a complete solution for:

     Uneven ground

     Snow and ice blockage

     Strong wind sealing problems

     Barrier-free access requirements

For luxury residences, farms, estates, and commercial properties, this system reduces installation costs, improves durability, and delivers a smoother everyday user experience.

If you are facing any of the following problems:

     Gates freezing during winter

     Scraping on gravel or sloped driveways

     Wind-induced vibration and dust infiltration

     Expensive underground gate installations

our technical team can help you find the right solution for your project.
