A swing gate opener installation can fail even when the operator itself is working correctly. In many overseas projects, problems are caused by the gate structure, mechanical installation, or power supply rather than the opener. Checking these factors before commissioning can reduce troubleshooting time and prevent costly rework.

1. Check the Gate Before Installation

The gate should move smoothly by hand before the automatic swing gate opener is installed. Rusty or worn hinges, a twisted frame, or a sagging gate can create excessive and inconsistent resistance, causing the motor to stop frequently when it detects an obstruction.

Gate weight is another critical factor. If the actual leaf weight exceeds the opener's rated capacity, the motor may operate under continuous overload and trigger thermal or overcurrent protection.

Installers should also check the gate's opening path. Walls, posts, ground stops, and other obstacles can interfere with the movement if sufficient clearance is not provided.

For double swing gates, both leaves should have reasonably consistent mechanical resistance. Significant differences can affect synchronized operation and prevent one leaf from reaching its fully open or closed position.

2. Avoid Mechanical Installation Errors

Incorrect mounting geometry is a common cause of swing gate opener installation problems. For articulated-arm operators, the mounting dimensions and pivot position must be set according to the manufacturer's specifications. Incorrect geometry can create a dead point and reduce the operator's effective force.

For linear actuator gate openers, excessive mounting angles can introduce unwanted lateral forces, increasing stress on the actuator, brackets, and gate structure.

The mounting surface must also be strong enough to withstand repeated loads. Hollow masonry, weak posts, or unstable surfaces can allow the operator to move during operation, eventually affecting travel limits and alignment.

Mechanical stops and electronic limits should work together rather than conflict. A gate repeatedly hitting a hard stop can cause unnecessary impact and trigger the opener's protection system.

3. Check Power and Wiring

Insufficient power supply is another potential cause of unreliable operation. Long cable runs with undersized wiring can create voltage drops during motor startup, resulting in unstable operation or repeated restarts.

Installers should verify motor, limit-switch, and safety-device wiring against the manufacturer's wiring diagram. Damaged cables, moisture entering conduits, incorrect grounding, or electrical interference from nearby equipment can also cause abnormal controller behavior.

4. Choose the Right Swing Gate Opener

Correct sizing can prevent many installation problems from the beginning.

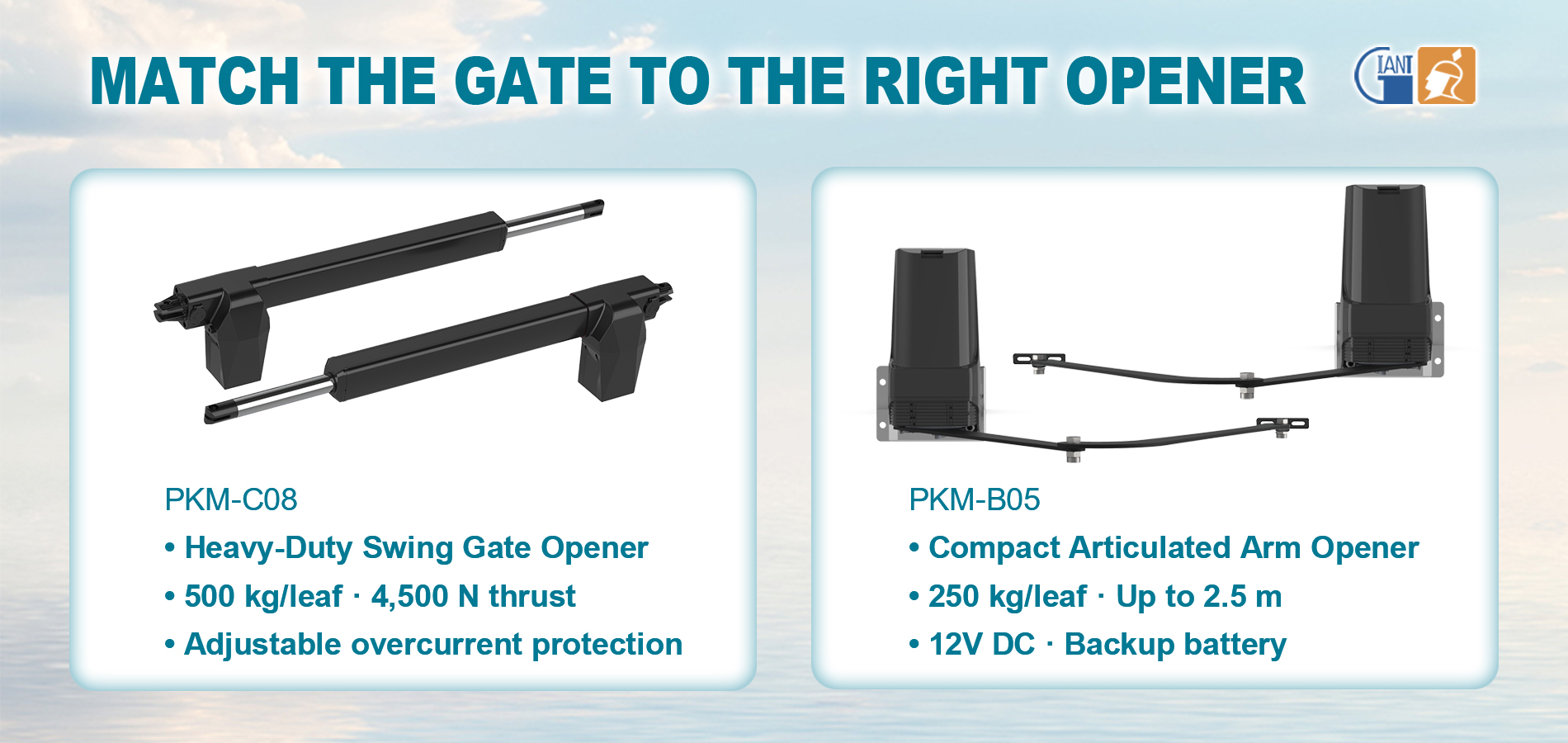

The PKM-C08 linear swing gate opener is designed for heavy gates, supporting up to 500 kg per leaf with 4,500 N of thrust. Its adjustable overcurrent sensitivity helps installers match protection settings to different gate resistance conditions.

For more compact applications, the PKM-B05 articulated arm swing gate opener supports up to 250 kg per leaf and gate widths of up to 2.5 m. Its 12V DC power system and backup battery management make it suitable for projects where stable power supply is a consideration.

Both models support XHouse IoT remote control via Wi-Fi/Bluetooth, allowing installers to adjust parameters and manage remote controls through the mobile app.

A successful swing gate automation project starts with three fundamentals: a properly balanced gate, correct mechanical installation, and an opener correctly matched to the gate's weight and geometry.
